Machine Vision Lenses

Every Pixels are created by converting Photons to electrons, and these photons pass through the optics before reaching the sensor. Choosing the right lens for the right application is one of the most important step to a successful vision application.

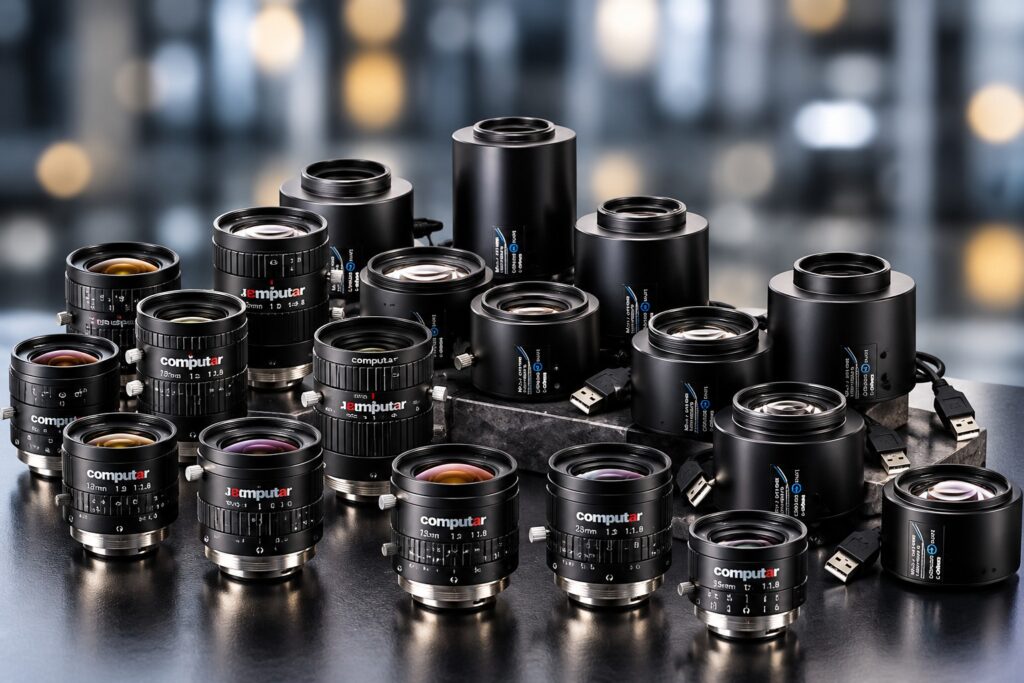

Genesys Vision Automation offers a wide varieties of Machine Vision Lenses design for both specific and general machine vision applications.

MPY Series 12 Megapixel Lenses

Presenting a powerful line of 12 Megapixel C-mount lenses designed to fully leverage the high sensitivity and precise high-speed imaging of the 1.1” Sony IMX253 and IMX255 sensors.
MPY Series are available in full range of common focal lengths for virtually any application—supporting pixel sizes as low as 3.45μm.

MPY Series Features

Machine Vision and ITS Applications
Fixed Focal Length
Available in 8, 12, 16, 25, 35 and 50mm focal lengths
Smallest 1.1” lens for > 10MP Lens in the industry
F2.8
12 Megapixel lens
3.45µm pixel size
Light weight
Vibration resistance up to 5G
Image circle Ø17

MPW2 Lens Series

5 Megapixel Ultra-low Distortion Lens

The MPW2 Series supports 2/3” sensor format at 5 Megapixel resolution in a C-mount lens. This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.

8, 12, 16, 25, 35 and 50mm focal lengths
Small form factor
2/3” format
5 Megapixel
Ultra low distortion
Higher relative illumination rate
Floating design
Locking set screws for focus and iris

MP2 Lens Series

Megapixel Ultra-low Distortion Lens Series

The MP2 series lenses are engineered for maximum performance in close-up applications required in factory automation, robotics and image processing areas.

This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.

8, 12, 16, 25, 35 and 50mm focal lengths
Ultra-low distortion
Higher relative illumination rate
Captures full resolution of megapixel cameras
Assured excellent light intensity even in peripheral areas
High contrast and sharp picture in all areas of the screen
Compact design
Locking set screws for focus and iris

Ruggedized Lens Series

The MPW2-R Series Ruggedized Mechanical Design Minimizes Image Aberrations from Shock and Vibration

As machine vision applications continue to expand into more demanding environments, maintaining optical integrity with vibrations, shocks, and temperature changes is critical. Computar has designed the MPW2-R Ruggedized Lens Series, a ruggedized version of its popular 5 MP, 2/3″ MPW2 Series of machine vision lenses.

Computar's MPW2-R Ruggedized Lens Series feature

Minimizes Image Aberrations from Shock & Vibration
Same optics as existing Computar’s MPW2 series
8mm, 12mm, 16mm, 25mm, 35mm and 50mm options
Redundant Focus: Adjustable with double nut mechanism
All elements are bonded to the lens body.
Durability: 10G
More compact than Computar’s MPW2 Series

Telecentric Lens Series

The quality optics of Computar's Telecentric lenses provide high-resolution images with the lowest possible geometrical distortion A new addition to Computar's Telecentric Series

TEC45165MPY-WI

Compatible with up to 12MP sensors on 1.1” Cameras
Specialized for the Sony IMX253, 3.45μm
C-mount
Designed for a 165.2mm WD (working distance)
Low TV distortion correction up to the outermost corner (-0.024%) for optimal machine vision performance.
Capable of viewing 1pixel as 10μm
Ideal applications include measurement, positioning, and appearance inspection.

Computar’s Telecentric Series

Computar’s Telecentric lineup includes the well-known V-Series and M-Series featuring high-resolution operation with precise accuracy. Computar offers an extensive selection of models suitable for various sensor types, and almost any application.
